Outdoor Compact Integrated DC Power System
HJ048 series outdoor small integrated DC power supply, assembled type, IP65 protection grade. Huijue Group produces it for the power equipment of all kinds of network access layers. It can achieve long-term backup power when matched with a battery module.
Product Description:
Introduction:
Product Features:
Product Dimensions:
Product Description:
Huijue Group produces an assembled outdoor small integrated DC power supply type named the HJ048. It is used for a variety of network access layer equipment power supplies for the protection level IP65. It can be used with batteries for longer backup power. The wide range of applications includes mobile network indoor distribution systems, mobile network remote micro base stations, WLAN access layer POE switches, and more. In addition, this power supply possesses a number of intelligent functions such as-but not limited to-remote signalling, remote measurement, and remote control. The present power supply has various protection means such as overload protection, overheat protection among others.
Introduction:
Outdoor Integrated DC Power Supply: supplies power to the low-power network access layer equipment; with a battery, it may provide long-term backup when equipped. It can be extensively used in mobile network indoor distribution systems, mobile network remote micro base stations, WLAN access layer POE switches, IMS, FTTH data network access sites, and many more. This controller is connected through an RS-485 communication interface, which can real-time monitor the working condition. It has remote signaling, remote measurement, and remote control functions. It also has low discharge voltage protection of the battery, output overload protection, high-temperature protection, lightning protection, and grounding protection. Due to multiple outputs of -48V, several devices can be powered at the same time. The enclosure is designed for outdoors, according to the IP65 protection level. It supports wall-mounted and pole mounting; the whole performance is stable and practical.
The communication function of the power supply supports 4G/5G/GPRS wireless transmission and networking, positioning function, and real-time monitoring, which can upload the operating status of the device. It also supports the connection of various types of intelligent devices and sensors. This product provides not only high performance, high integration, and high stability but also excellent scalability.
Product Features:
- High efficiency, high stability, high integration, and excellent expandability
- The product uses IP65 protection level, provides power for network access layer equipment, and can be used in mobile network indoor distribution systems, mobile network remote micro base stations, and WLAN access layer POE switches.
- This device is designed with overload protection, high-temperature protection, lightning protection, and grounding protection. It supports remote control, configuration, and monitoring.
- It has several -48V outputs that are capable of powering several devices simultaneously. It supports RS485/ CAN communication interfaces to monitor input voltage, output voltage, battery voltage, load current, battery charge/discharge current, and so on.
- The product supports Bluetooth near-field wireless communication, adopts plug-in hanging installation, and is easy to install and configure to meet various application scenarios.

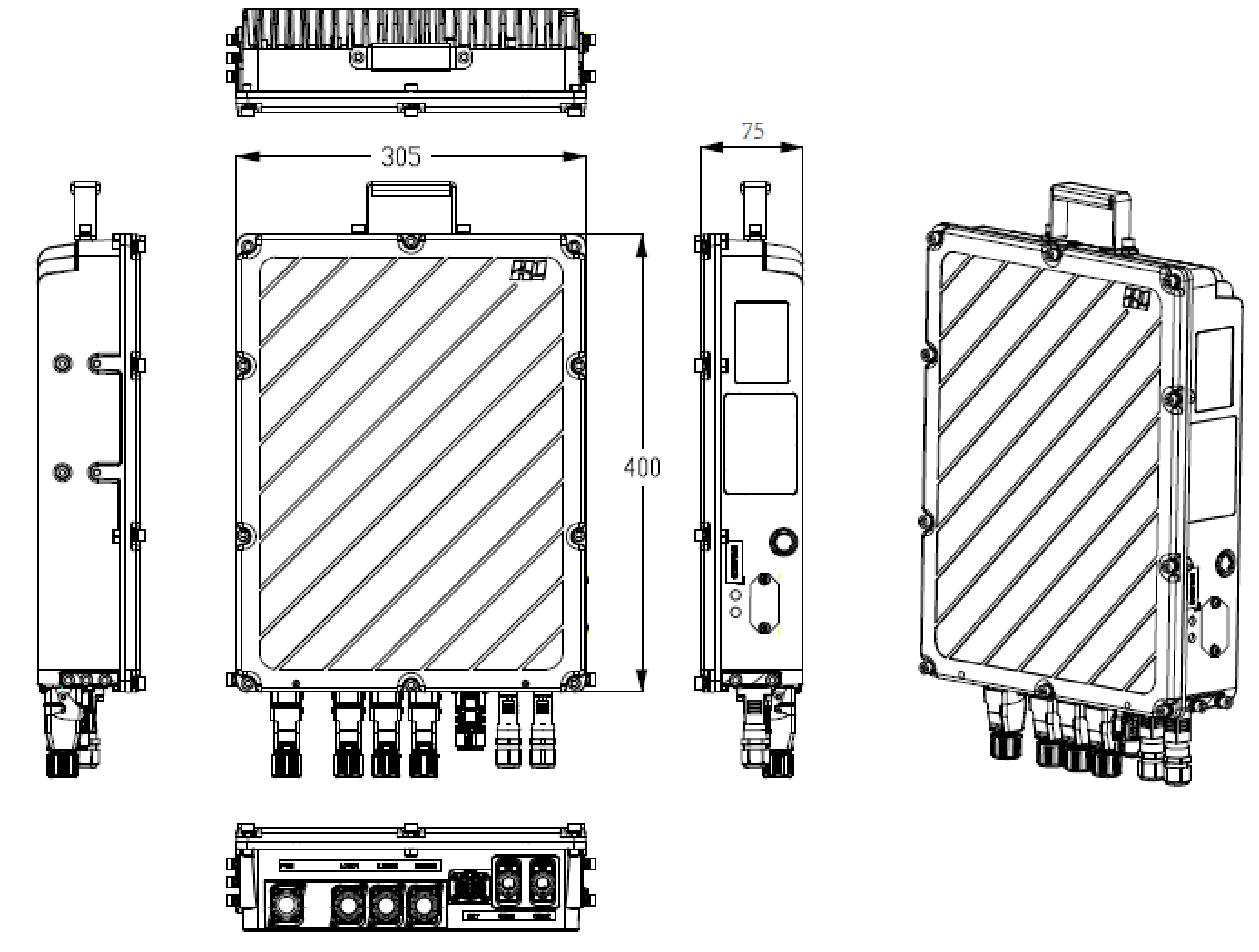

Product Dimensions:
Power Module Specifications:
| Model | HJ048(2KW) | HJ048(3KW) | HJ048(6KW) |
|---|---|---|---|
| Operating Temperature | -40℃～+55℃ | -40℃～+55℃ | -40℃～+55℃ |
| Cooling Method | Natural Cooling | Natural Cooling | Natural Cooling |
| Dimensions (WHT mm) | 30540075 mm | 30540075 mm | 344434111 mm |
| Total Weight | ≤10kg | ≤10kg | ≤16kg |
| Noise Index | <45 dB | <45 dB | <45 dB |
| Installation Method | Wall-mounted, pole-mounted, steel tower; flag-mounted, flat-mounted, ground-mounted | Wall-mounted, pole-mounted, steel tower; flag-mounted, flat-mounted, ground-mounted | Wall-mounted, pole-mounted, steel tower; flag-mounted, flat-mounted, ground-mounted |
| Protection Level | IP65 (Die-cast aluminum shell) | IP65 (Die-cast aluminum shell) | IP65 (Die-cast aluminum shell) |
| AC Input Voltage | Rated Voltage: AC 220V | Rated Voltage: AC 220V | Rated Voltage: AC 220V |
| Input Range | AC 176～264V | AC 176～264V | AC 176～264V |
| Input Frequency | 45～55Hz | 45～55Hz | 45～55Hz |
| Max Input Current | 12A | 18A | 36A |
| Power Factor | ≥0.99 | ≥0.99 | ≥0.99 |
| AC Surge | 20kA (8/20ms) | 20kA (8/20ms) | 20kA (8/20μs) |
| Nominal Output Voltage | DC 48V | DC 48V | DC 48V |
| Rated Output Power | 2000W | 3000W | 6000W |
| Load Output Branch | 40A × 3 | 40A × 3 | 40A × 7 |
| Battery Branch | 60A × 1 | 60A × 1 | 125A × 2 |
| DC Surge | 10kA (8/20ms) | 10kA (8/20ms) | 10kA (8/20μs) |
| Max Efficiency | 97.50% | 97.50% | 97.50% |
| Human-Machine Interaction | Serial communication; Mobile APP; Remote monitoring platform | Serial communication; Mobile APP; Remote monitoring platform | Serial communication; Mobile APP; Remote monitoring platform |
| Dry Contact | 3 alarm dry contacts output (configurable) | 3 alarm dry contacts output (configurable) | 3 alarm dry contacts output (configurable) |
| Communication Interface | RS485; CAN | RS485; CAN | RS485; CAN |
| Wireless Communication | 4G/5G full network; Bluetooth | 4G/5G full network; Bluetooth | 4G/5G full network; Bluetooth |
| Supported Battery Type | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate |
| Rated Battery Voltage | DC 48V | DC 48V | DC 48V |
| Supported Battery Capacity | 48V/50Ah | 48V/50Ah | 48V/50Ah (Single or Parallel) |
| BMS Communication | CAN communication | CAN communication | CAN communication |
| Alarms & Protection | Overvoltage, Undervoltage, Short-circuit, Overload, Reverse connection, Over-temperature, Low-temperature protection, etc. | Overvoltage, Undervoltage, Short-circuit, Overload, Reverse connection, Over-temperature, Low-temperature protection, etc. | Overvoltage, Undervoltage, Short-circuit, Overload, Reverse connection, Over-temperature, Low-temperature protection, etc. |
The HJ048 power system supports multi-module parallel expansion, and battery modules also support parallel expansion. The maximum configuration is 4PSU+4BAT (4 power supplies and 4 batteries), supporting up to 12 power distribution channels. The expansion method involves using the accompanying cascade cable to cascade the battery module's charge/discharge port to the power module's charge/discharge port, then cascading the communication ports.
